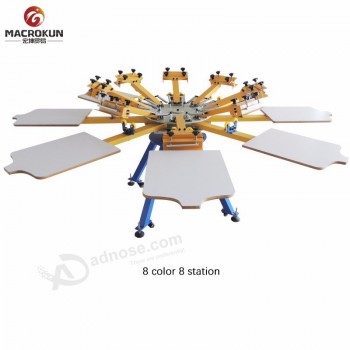

Manual DIY Full set 8 color 8 station t-shirt silk screen printing machine kit
Chat Now!
- Plate Type:
- Screen Printer
- Applicable Industries:
- Retail, Printing Shops
- Condition:
- New
- Place of Origin:
- Hebei, China
- Brand Name:
- M&K
- Usage:
- Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other
- Automatic Grade:
- manual
- Color & Page:
- Multicolor
- Voltage:
- 0v
- Dimensions(L*W*H):
- 97x85x34
- Weight:
- 150kg,190KG,240kg
- Certification:
- CE ISO9001
- Warranty:
- 1 YEAR
- After-sales Service Provided:
- Online support, Free spare parts, Video technical support
- Color/Station:
- 4Color4Station,6Color6Station,8Color8Station
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- carton box/wooden box or as customer's requirement
- Port
- Tian Jin or other Port
Online Customization
Micro-Registration
Product Parameters:
| Model | Color/Station | Pallet materials | Pallet size | Max.Frame size | Max.images size | Weight |
| MK404-MR15A | 4Color4Station | Aluminum | 450x610mm | 500x700mm | 400x550mm | 150kg |
| MK606-MR15A | 6Color6Station | Aluminum | 450x610mm | 500x700mm | 400x550mm | 190kg |
| MK808-MR15A | 8Color8Station | Aluminum | 450x610mm | 500x700mm | 400x550mm | 240kg |
Main Feature:
. MR 15A design is our self research micro-regidtration manual screen printing machine
. Adjust the screw handle to move the screen to all directions,very accurate for multicolor registration.
. Alum table is more durable and high temperature resistance.
. Double rotary type,screen and table can rotate independently,strong base with caseter to move freely.
Product Detail:
Easy Adjusting system
Product Parameters:
| Design | Color/Station | Pallet materials | Weight | Pallet size | Max.Frame size | Max.images size |
| MK404-ESU | 4Color4Station | Wood | 125kg | 450x610mm | 500x600mm | 400x500mm |
| MK606-ESU | 6Color6Station | Wood | 165kg | 450x610mm | 500x600mm | 400x500mm |
| MK808-ESU | 8Color8Station | Wood | 200kg | 450x610mm | 500x600mm | 400x500mm |
Main Feature:
* ESU series machine is our company basic style with multion screen printing head
* Loose the top two screw handles to adjust the screen clamp,move the clamp from right to left,back and front,up and down and angles, no need to loose the screen directly
* Alum table and HDF table are available for choosing,new style base is more strong and stable.
* Double rotary type,screen and table can rotate independently,strong base with caster to move freely
Screen Stretching Machine
Product Parameters:
| Model | Model | Model | Model |
| NA104 | NA105 | NA108 | NA1632 |
| Max.area:60x60cm | Max.area:90x120cm | Max.working area:150x110cm | Max.working area:150x110cm |
| Manual | Manual | Top network using peneumatic | Full automatic operation with digital |
| Gross weight:20kg | Gross weight:100kg | elevation,flexible and reliable | controller,flexible and reliable |
| Gross Weight:150kg | Gross Weight:1200kg |
