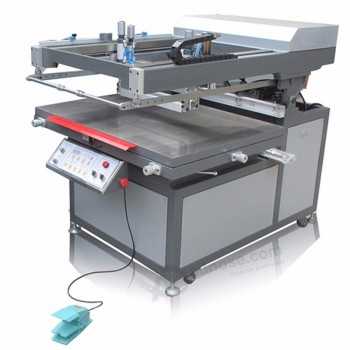

Clam shell traffic sign auto screen printing machine TMP-70100
Chat Now!
- Plate Type:
- Screen Printer
- Applicable Industries:
- Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- After Warranty Service:
- Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
- Malaysia
- Showroom Location:
- Malaysia
- Condition:
- New
- Place of Origin:
- Guangdong, China
- Brand Name:
- Tamprinter
- Usage:
- Paper Printer, Label Printer, Card Printer, Bill Printer, Cloths Printer
- Automatic Grade:
- Semi-Automatic
- Color & Page:
- Single Color
- Voltage:
- 220v
- Dimensions(L*W*H):
- 1.8X1.37X1.5m
- Weight:
- 480kg
- Certification:
- CE
- Warranty:
- 1 YEAR
- After-sales Service Provided:
- Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- Key Selling Points:
- Long Service Life
- Application:
- screen silk printer
- product name:
- printer for screen printing
- Size of worktable (mm):
- 800X1100
- Max printing area (mm):
- 700X1000
- Max frame (mm):
- 1000X1300
- Min frame (mm):
- 550X650
- Substrate thickness (mm):
- 0-20
- Printing speed (pcs/h):
- 500-1000
- Working pressure(Mpa):
- 0.3-0.5
- Air consumption 0.6Mpa:
- 13L/pcs
- Supply Ability:
- 50 Set/Sets per Month
- Packaging Details
- plywood case
- Port
- shenzhen
- Picture Example:
- Lead Time :
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated
Online Customization
Product description
factory Video:
https://youtu.be/tB4kHedkz6c
print paper Video:
https://v.youku.com/v_show/id_XNzIyODU2NjMy.html
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
Model No. | TMP-70100 |
Size of worktable (mm) | 800X1100 |
Max printing area (mm) | 700X1000 |
Max frame (mm) | 1000X1300 |
Min frame (mm) | 550X650 |
Substrate thickness (mm) | 0-20 |
Printing speed (pcs/h) | 500-1000 |
Working pressure(Mpa) | 0.3-0.5 |
Air consumption 0.6Mpa | 13L/pcs |
Height worktable to ground | 820mm |
Dimensions(LXWXH)m | 1.8X1.37X1.5m |
CBM | 4.1CBM |
weight | 480kg |
voltage /single phase | 220V 50Hz |
power | 3kw |
Features:
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
Packaging & delivery
Work shop
Partner & customers
Certificates
Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed.
