China Manufacturer Auto Swing Cylinder Screen Printing Machine
Chat Now!

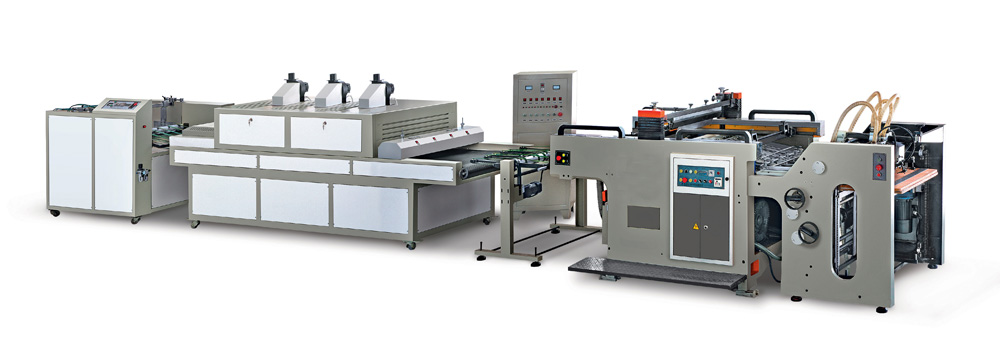

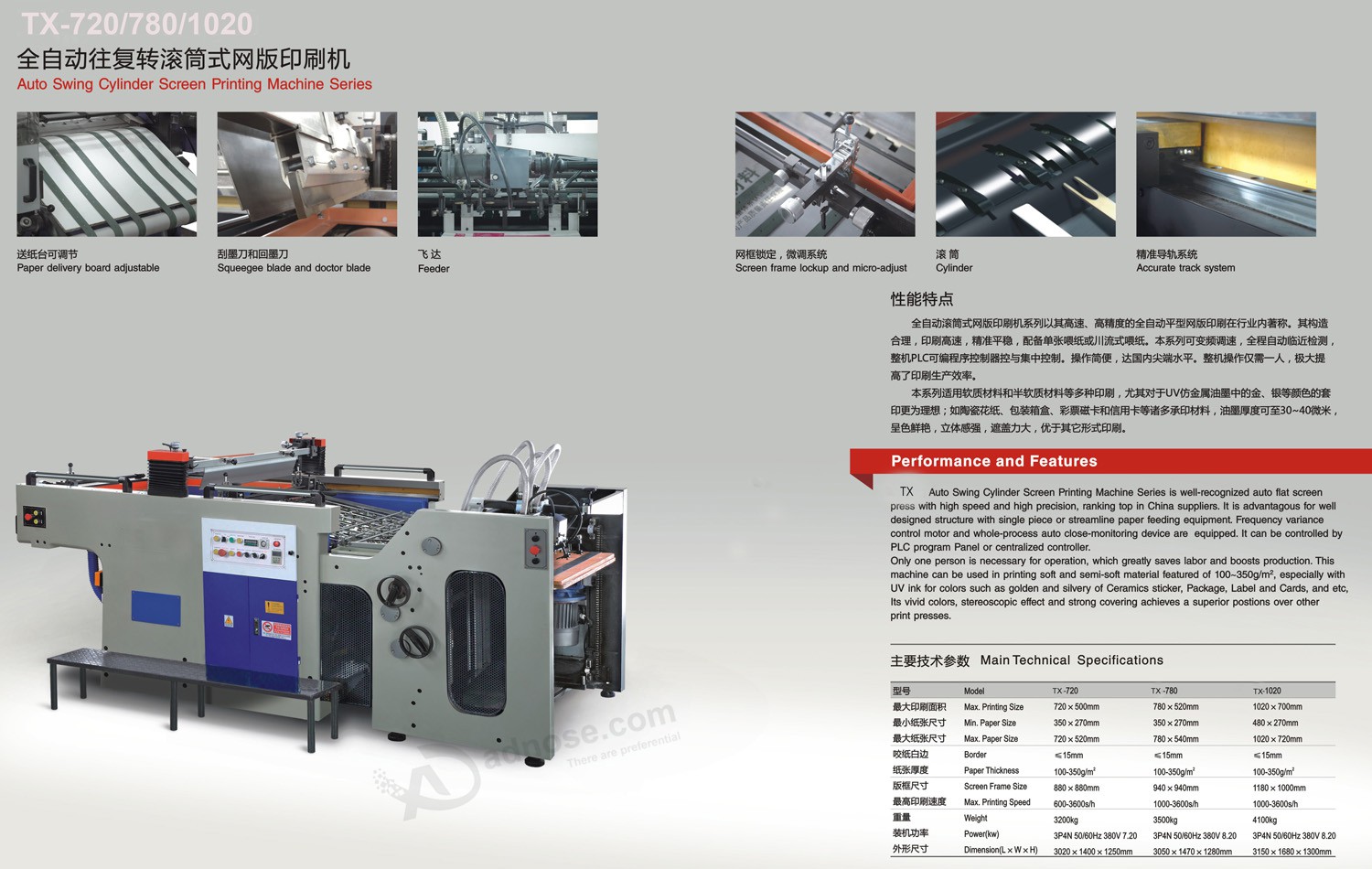

Auto Swing Cylinder Screen Printing Machine
1： Application:
It widely used on sheet paper, ceramics decals color paper, cigarettes and wine packing, heat transfer film, PVC plactic base, and so on.
2: Features and performance:
Auto swing cylinder screen press is a kind of auto flat screen press of high speed and high precision, It's skilled manufacture, reasonable structure, stable and high speed print paper feeding is equipped, it is suitable for soft and half-soft materials of 100-350g/m2. Frequency control of motor speed is monitored and controlled automatically,with easy operation and high sensitivity, It reaches an advanced level in the country. only one person is needed to operate the press. This machine can be used in kinds of print, especially colors of golden and credit card, and so on. The full oil, fresh color and stereoscopic model make the press better than others. Otherwise, customers can equip the machine with UV dryer and stacker into an auto screen press line.
3: Technical Parameter:
Model | TX-720 | TX-780 | TX-1020 |
Max.printing size: | 720*500mm | 780*520mm | 1020*700mm |
Min.paper size : | 350*270mm | 350*270mm | 480*270mm |
Max.paper size : | 720*520mm | 780*540mm | 1020*720mm |
Border: | < 15mm | < 15mm | < 15mm |
Paper thickness : | 100-350g/m2 | 100-350g/m2 | 100-350g/m2 |
Screen frame size: | 880x880mm | 940x940mm | 1180*1000mm |
Max.printing speed: | 600-3600s/h | 1000-3600s/h | 1000-3600s/h |
Weight : | 3200kg | 3500kg | 4100kg |
Power (kw) : | 3P4N 50/60HZ 380V 8.20 | 3P4N 50/60HZ 380V 8.20 | 3P4N 50/60HZ 380V 8.20 |
Dimension (LXWXH) | 3020*1400*1250mm | 3050*1470*1280mm | 3150*1680*1300mm |
-
