Printable Aluminum composite panel/ACP
Chat Now!
Printable Aluminum composite panel/ACP
- Size:
- 1220*2440 mm or customized
- Place of Origin:
- Shanghai, China (Mainland)
- Brand Name:
- JINGHUI
- Model Number:
- ACP
- Usage:
- Indoor
- Function:
- Anti-Static
- Surface Treatment:
- PE Coated
- Brand:
- Jinghui
- Color:
- 80 kinds of colors
- Surface coating:
- PE PVDF NANO PVDF
- Thickness:
- 2mm/3mm/4mm/5mm/6mm/7mm
- Aluminum Thickness:
- 0.08-0.6mm
- Application:
- Printing, Signs, cladding wall
- Width:
- 1220mm/1250mm/1500mm/1570mm
- Warranty:
- 15 Years for PE coating
- Supply Ability:
- 500 Ton/Tons per Month
- Packaging Details
- pallet
- Port
- Shanghai
Printable Aluminum composite panel/ACP/ACM
1. Dimensions of aluminum composite panel
Width | 1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm |
Length | 2440mm, 3200mm,4000mm 5000mm 6000mm,or customized |
Thickness | 2mm, 3mm, 4mm, 5mm, 6mm |
Thickness of ALU-layer | 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm |
Inner Core | Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material |

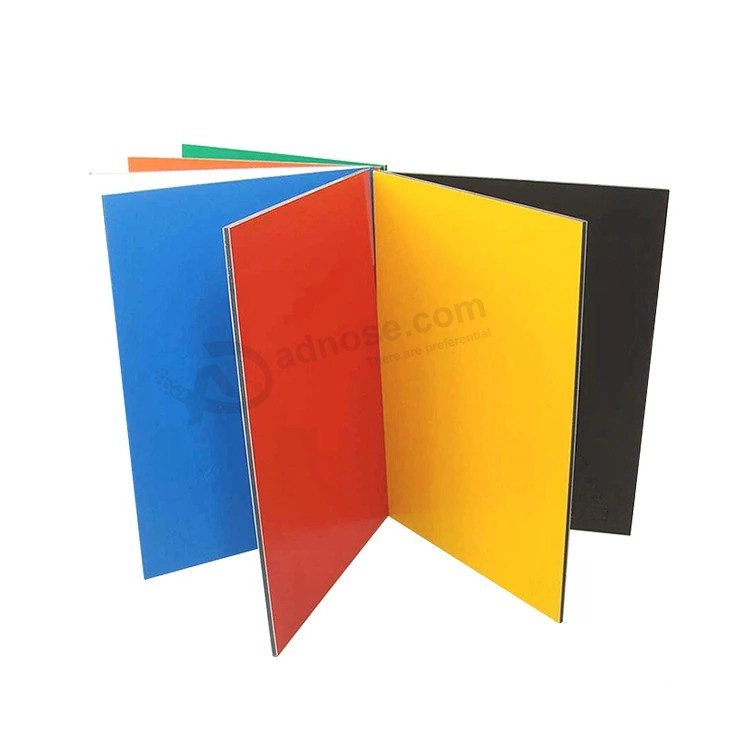

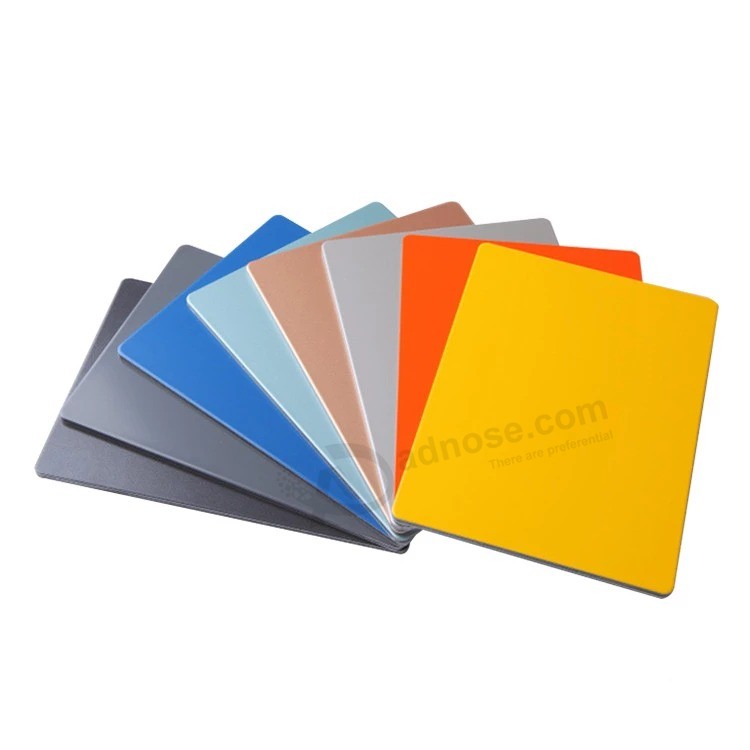

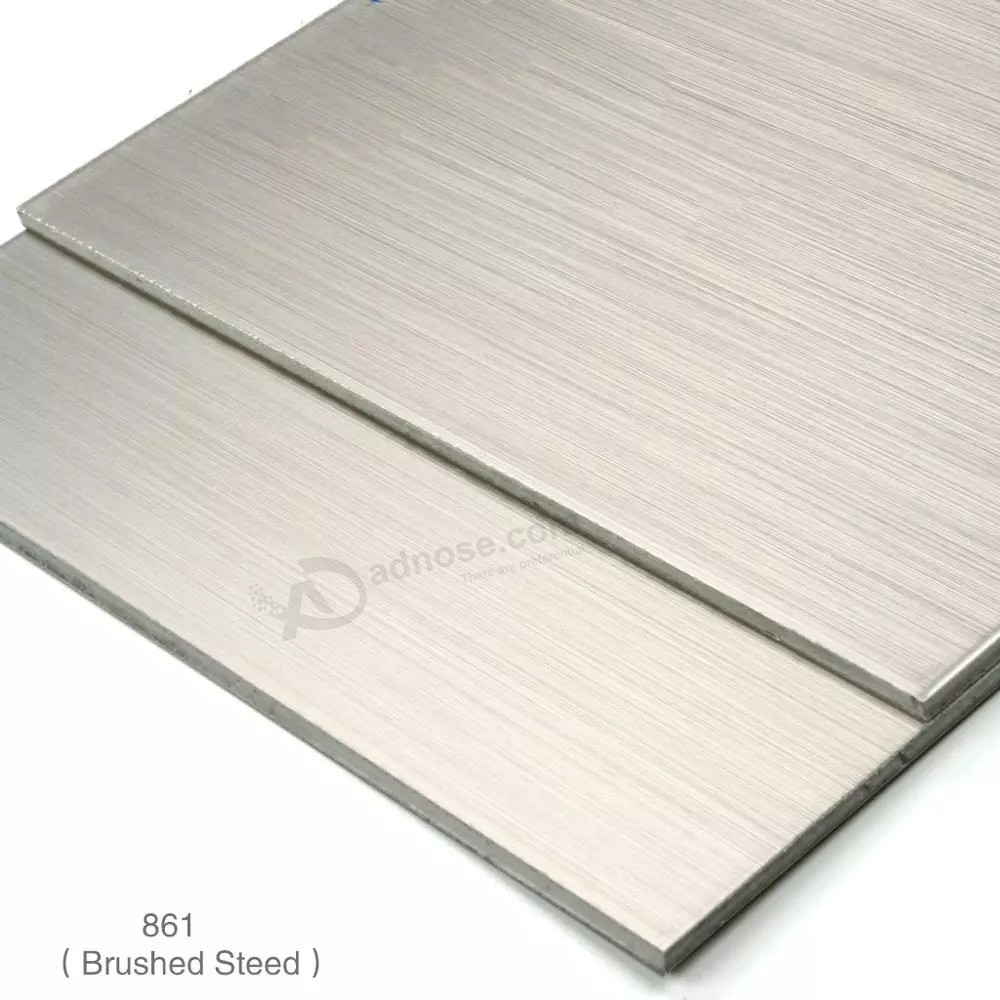

Color | Solid color, metallic color, brush color, mirror, marble, wooden color, glossy |
Brand | KINGALUCO, MEGABOND, or customized |
Surface | PE coating , PVDF coating, NANO, Brush surface, mirror surface |
Thickness of film | 0.07mm,0.09mm |
FCL and LCL | 1220*2440*4mm 1500 sheets in 20 feet container; wooden pallet package in Less Container Loading |
Non-standard sizes and special colors are available, according to customers' requests
2. Standard: according to GB/T 17748-2008 standard

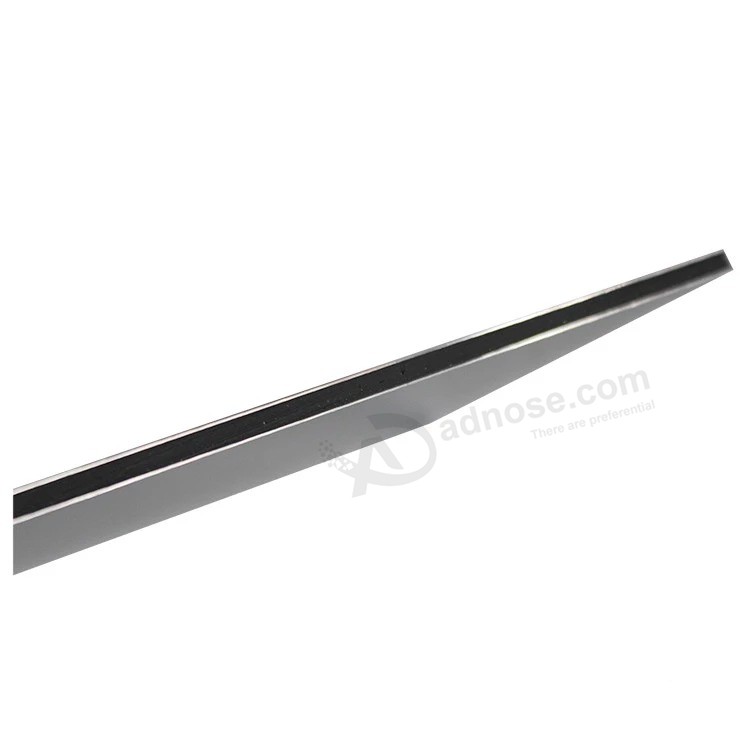

3. Basic Material of aluminum composite panel
1) front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)
4. Characters of insulated aluminum panels/aluminum cladding panels/column covers aluminum composite panel
a) Super peeling strength
b) Excellent surface flatness and smoothness
c) Superior weather, corrosion, pollutant resistance
d) Even coating, various colors
e) Fireproof, excellent heat and sound insulation
f) Superior impact resistance
g) Lightweight and easy to process
h) Easy to maintain, self-clean
