Carton box printing slotting die cutting machine
Roll over image to zoom in
×
Carton box printing slotting die cutting machine
Share to:
VIP [VIPfirst7year] index:6
Deposit paid 0.00 $Deposit paid
Contact Seller
TEL:15820024887
Mobile Phone:15820024887
Email:2850991637@qq.com

Carton box printing slotting die cutting machine

0 customer reviews 1 follows
Price:
$6.00 - 10.00 / Set
Min.Order:
1 Set
Contact Supplier
Request a custom order and have something just for you!


Quick Details
Applicable Industries:
Manufacturing Plant, Carton box printing
Condition:
New
Type:
Carton box printing slotting die cutting machine
Computerized:
Yes
Place of Origin:
Shandong, China
Brand Name:
Canatech
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, No after-sales service
Product name:
PRINTIN SLOTTED DIE CUTTING MACHINE
Wall Plate Inner width:
2800MM
Max. paper size:
1200X2650MM(Continuous) 1600X2650MM(Intermittent)
Min. paper size:
360X650MM
Max. printing size:
1200X2500MM
Max. grooving depth:
300MM(Can increase knife)
Printing roller lateral transfer:
Left and right each 10MM
Equipment Shell Spraying:
Cold Plate(2mm)
Whole machine (including ground rail):
About20T
Suitable for cardboard thickness:
1.5~11mm
Supply Ability
Supply Ability:
50 Set/Sets per   Year
Packaging & Delivery
Packaging Details
Carton
Port
Qingdao
Lead Time                        :
Quantity(Sets)1 - 1>1
Est. Time(days)40To be negotiated

Online Customization

Product Description

PRINTIN SLOTTED DIE CUTTING MACHINE

This machine uses the standard CAD module design, each unit mobile unit and the gear transmission printing slot and die-cutting, the transmission gear (uses the high quality alloy steel 20GrMnTi, the carburizing quenching, the fine grinding processing) and the shaft adopts the expansion sleeve type free bond connection mechanism, the virtual position magnifies, avoids the center wear, causes the printing press to maintain the long life overprinter precision ; The leading edge feeding system adopts high quality cam mechanism control, stable performance, fast paper feed speed, bending cardboard can also be transmitted accurately, inverter control machine main motor, more safe, energy-saving power, Independent plc and Color touch screen for the whole machine multi-functional control, more convenient, fast, flexible, safe; automatic circulation oil supply spray lubrication system, Reduce noise and increase gear working life.

Fully automatic


Easy to operate


Save labour


Increase of efficiency


Product Detailed

Front paper feeding:1 Set
Printing Units:1 Set
Grooving Units:1 Set
Circular Die Cutting: 1
Set

Technical parameters:

1
Wall Plate Inner width
2800MM
2
Max. paper size
1200X2650MM(Continuous)
1600X2650MM(Intermittent)
3
Min. paper size
360X650MM
4
Max. printing size
1200X2500MM
5
Max. grooving depth
300MM(Can increase knife)
6
 Printing roller, lateral transfer
Left and right each 10MM
7
Manual adjustment of upper and lower  anilox  roller
0~6MM
8
Manual Adjustment of Upper and Lower  print roller
0~11MM
9
Printing Roller, die-cutting roller, roller body rotation
360 Degree
10
Speed of economic production
150PC( Design 180PC)Sheet/min
11
Paper Feeder Roller
Φ136mm(Seamless pipe)
12
Print Roller diameter
Φ408mm
13
Paper Guide Roller diameter
Φ86mm( Seamless pipe)
14
Lower printing roller  diameter
Φ136mm(Seamless pipe)
15
Printing roller  diameter
Φ190mm( Seamless pipe)
16
Anilox  roller  diameter
Φ216mm( Seamless pipe)
17
Car wall
50MM Thickness(HT200)
18
Transmission Gear
Carburizing quenching, hardness 60, fine grinding, transmission gear thickness 50mm, main gear thickness 50mm(20GrMnTi)
19
Suitable for cardboard thickness
1.5~11mm
20
Whole machine (including ground rail)
About20T
21
Printing press Mounting dimensions
L6000xW4400xH2400mm( Installation space should be reserved for more than 2M space on operation surface)
22
Voltage Range
National standards(V)
23
Equipment Shell Spraying
Cold Plate(2mm)
Packing & Delivery
Our Company

Qingdao Canatech Imp. & Exp. Co., Ltd.

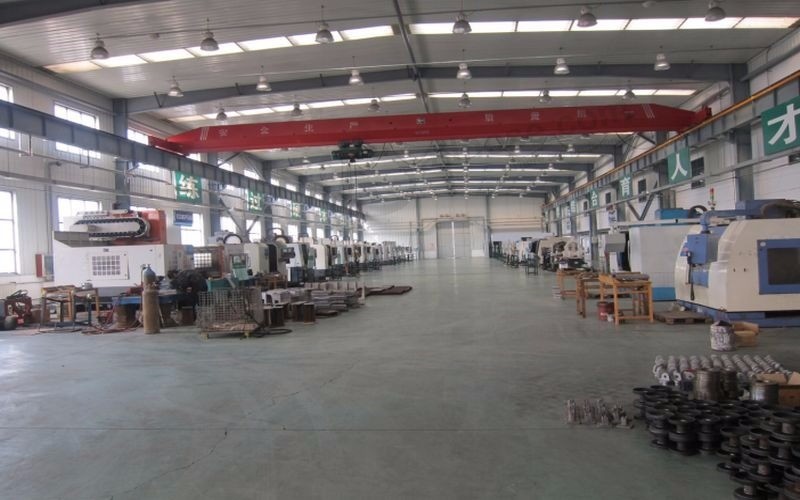

Qingdao Canatech Import & Export Co., Ltd. is located in Qingdao, the biggest seaport and manufacturing center in northern China. The company has several joint venture factories and a number of strategy cooperative factories in China. The business scope includes electric-mechanical integration equipment such as paper mill machines, corrugated paperboard processing and material handling machines, paper packaging and post-processing converting equipment, and supporting professional after-sales services. Our sales network covers more than 15 countries and regions around the world.

Over the years, the company always adhere to the faith of "creating value for customers", focuses on project implementation reliability and after-sales timeliness. With the support of domestic and abroad cooperative partners, the company relies on its rich experience in installation and management of international complete production line,  deep and meticulous professional advantages, and responsible after-sales service spirit, we have successfully finished  large-scale professional production line and also individual equipment for paper mills, corrugated board production factory, Kappa board factory, printing factory, packaging factory, etc. in Southeast Asia, the Middle East, Eastern Europe, South America and other regions. Up to now 2019, our company has a branch office and exclusive agent in India, an exclusive agent in Turkey, and an office in Germany.

We will continue to adhere to the "integrity cooperation, quality and efficiency, scientific management, steady development" business philosophy, and "timely, professional, perfect, enthusiastic, continuous" service concept, work together with customers home and abroad for mutual benefit, common development, and create brilliant future together.

FAQ

Q: 1. Can you accept  the small order?
A:   Yes, we also accept small order.
Q: 2. Do you accept ODM or OEM?
A:   ODM or OEM is welcomed.
Q: 3. How can I get more information I need?
A:    You can email us or leave message to us or contact us directly. We will reply you asap.
Q: 4. Can you offer samples?
A:   Some products can be provided as samples for free, but you need to pay the courier charge. You can contact us for more information.
Q: 5. Why choose us?
A:  1) We are a big manufacturer with many years professional experience.
     2) Fast delivery and good service.
     3) Stable quality with competitive price.
     4) Strict management system.
